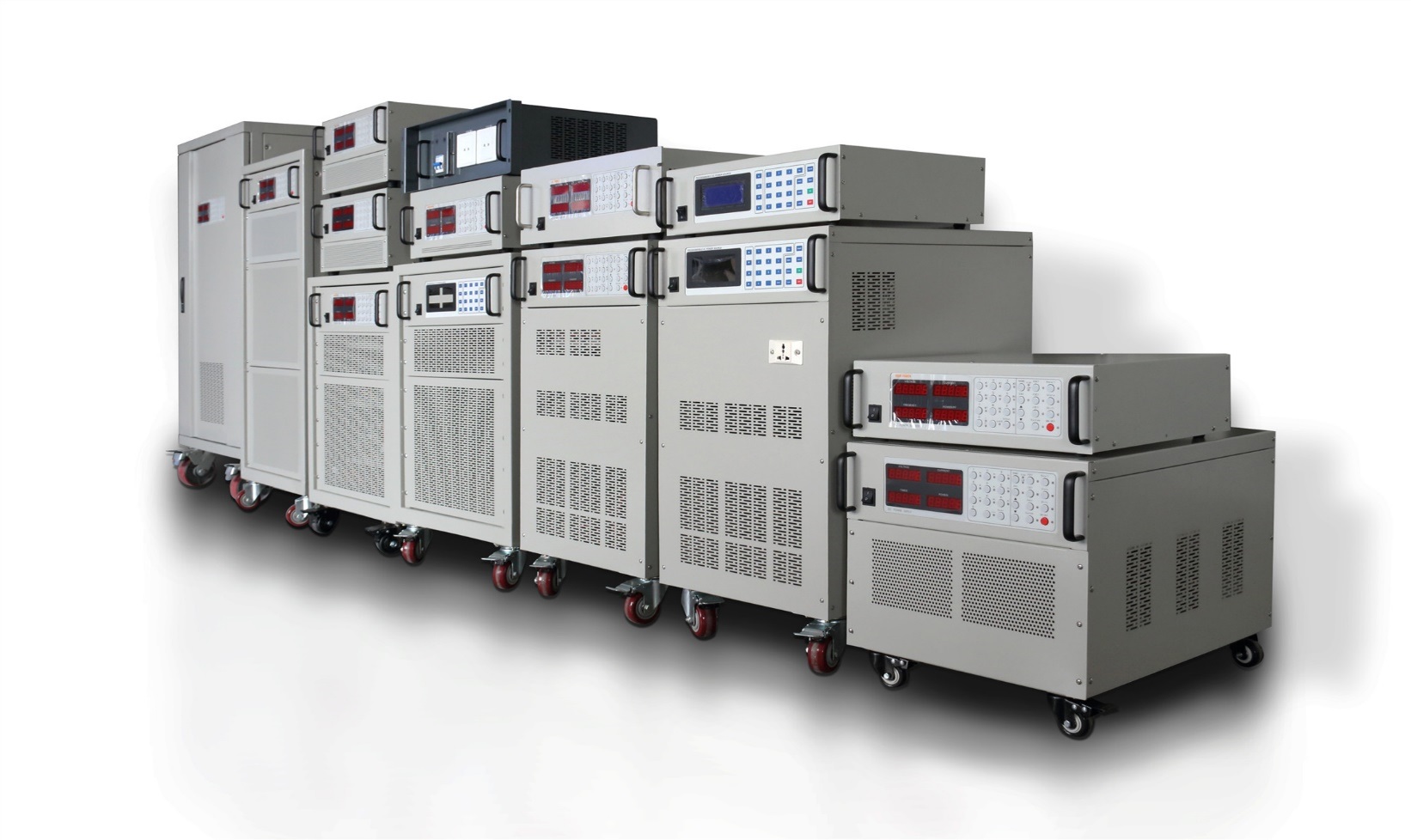

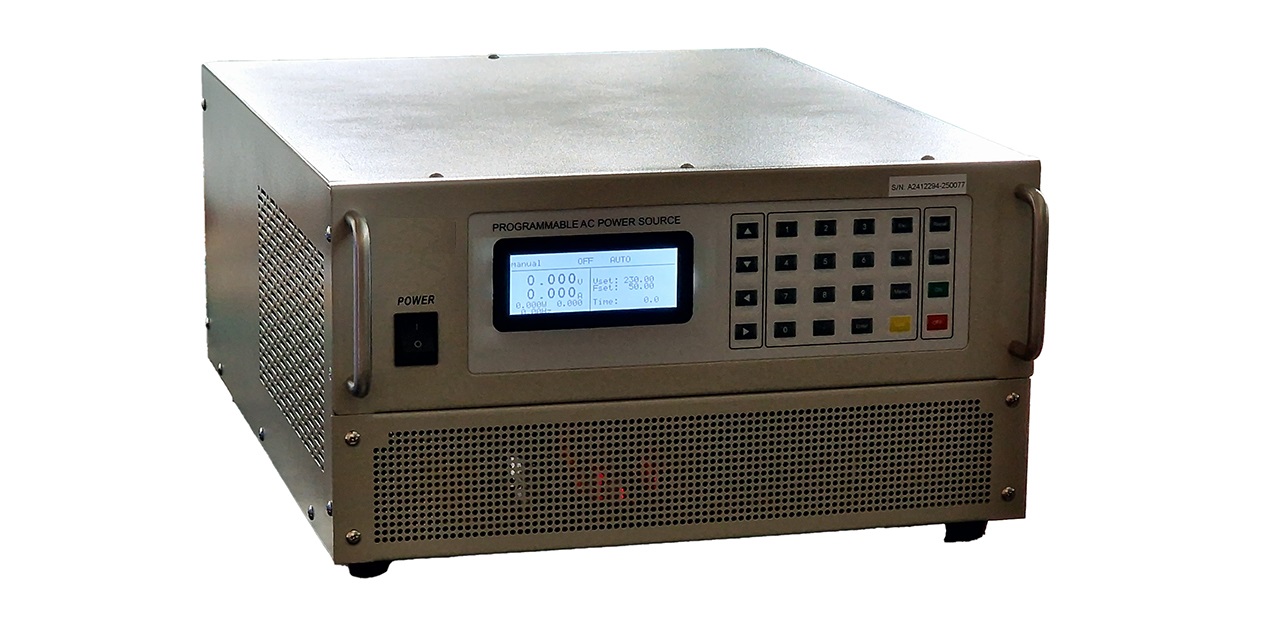

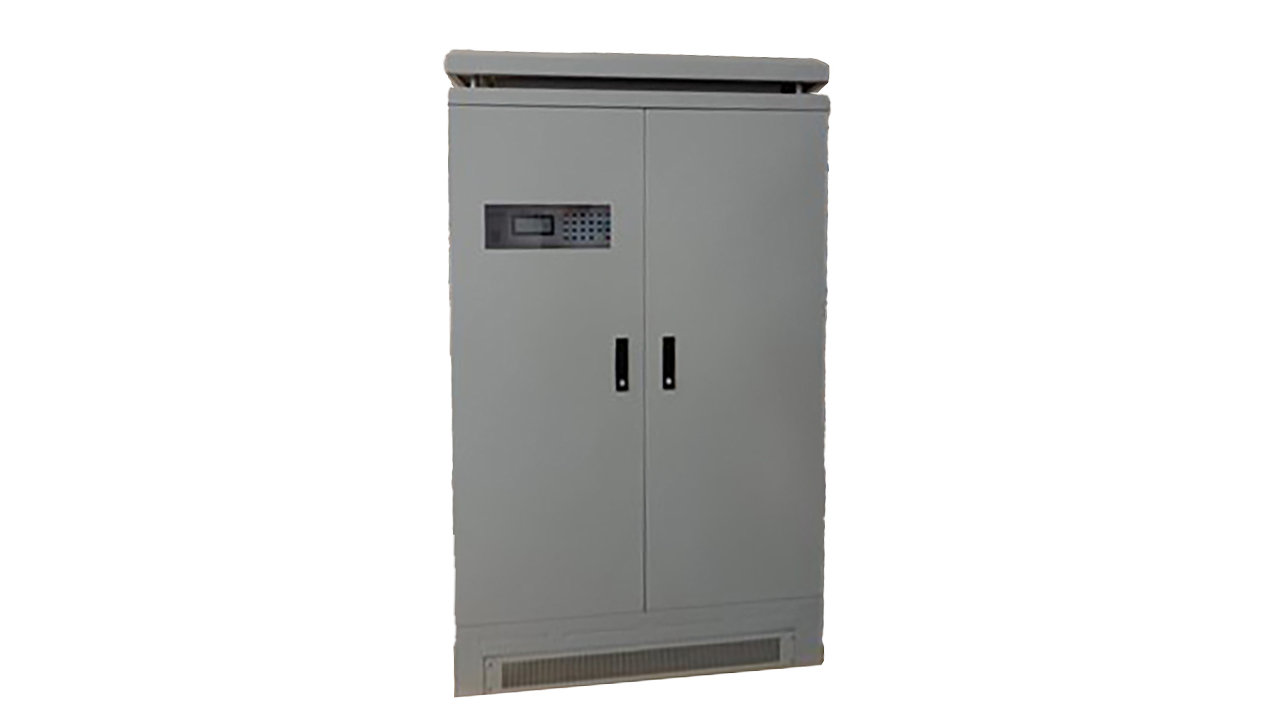

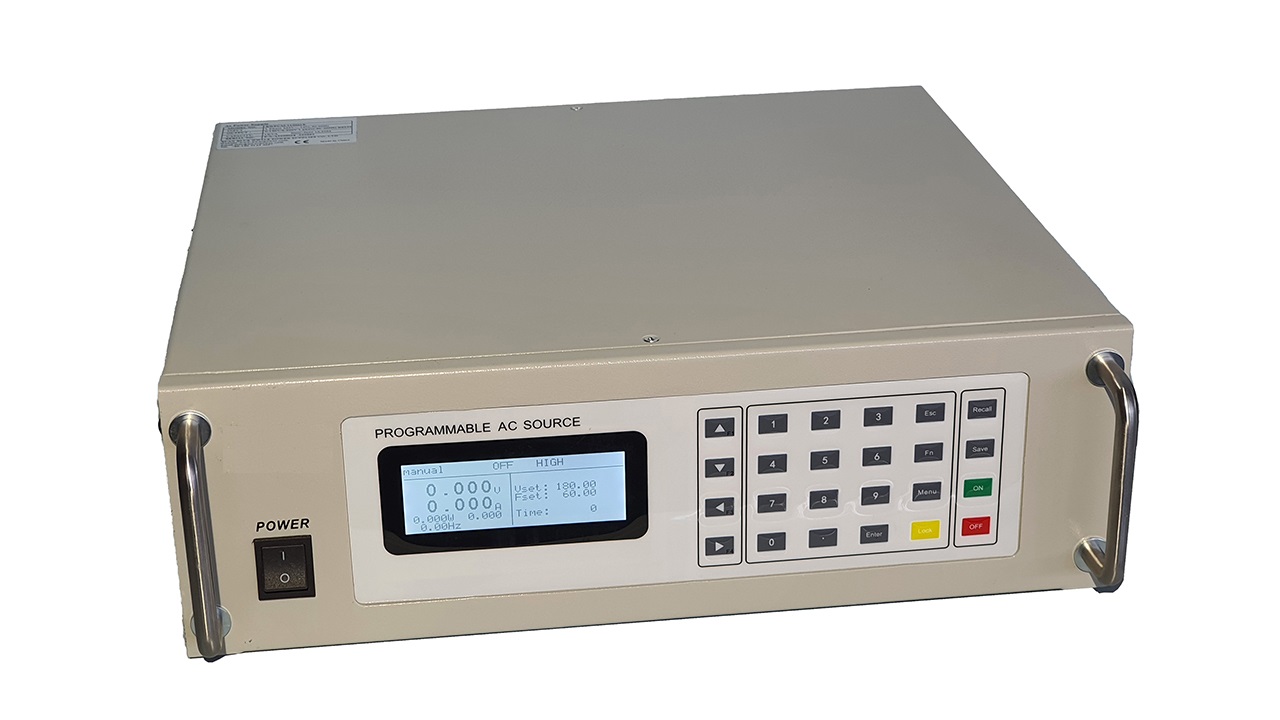

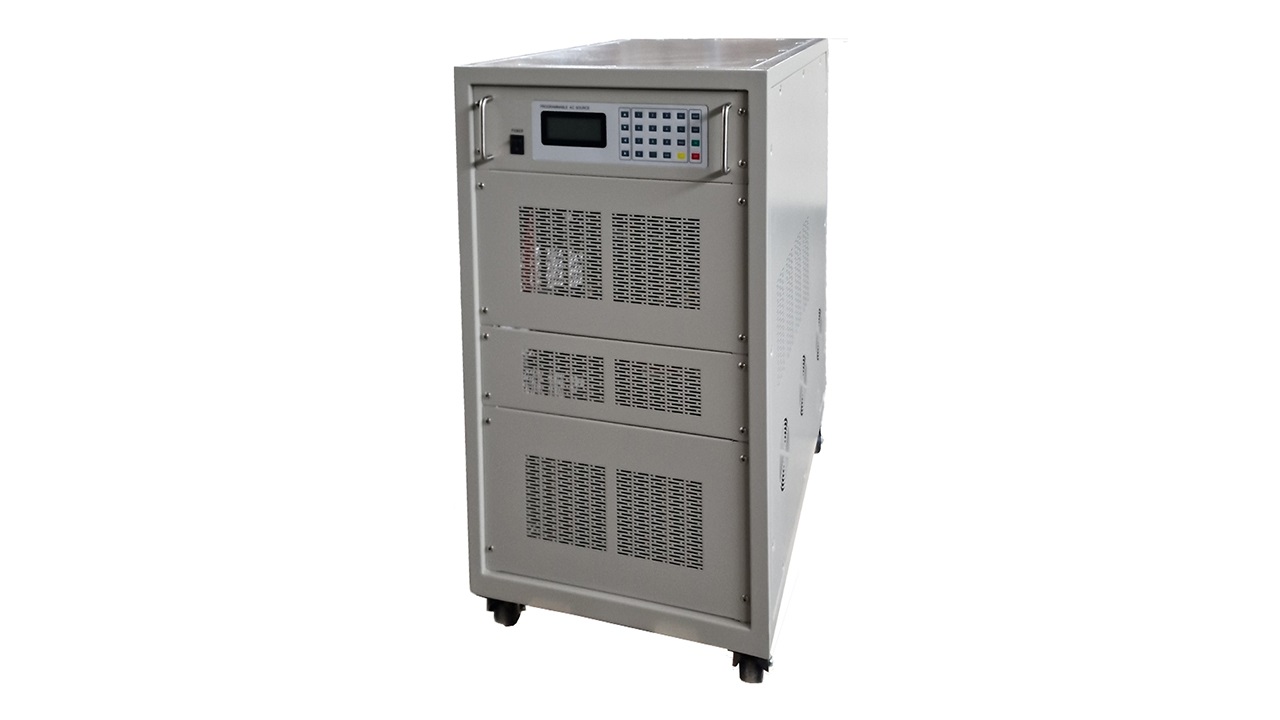

ABP 1/1 – 3/1 – 3/3 series frequency converters
The SHT-POWER ABP series solid-state/static frequency converter is a popular AC power supply designed to convert AC power from 50 Hz to 60 Hz or from 60 Hz to 50 Hz, as well as conventional 50/60 Hz to 400 Hz, or 50/60 Hz to 16.67 Hz / 25 Hz / 100 Hz.
Frequency converters change the frequency of electrical power from 50 Hz, used in Europe, to 60 Hz, used for example in the United States and parts of Japan.
GALAXY1 FC – EG1 1–10K – FC series frequency converters are available in power ratings from 800 W to 6 kW, with digitally controlled online double-conversion technology. Their versatility makes them suitable for powering a wide range of electrical and electronic systems.
Rated power
Single-phase output units: 1 kVA to 20 kVA
Three-phase output units: 6 kVA to 100 kVA
Input
Single-phase: 230 Vac ±10%
Three-phase: 230/400 Vac ±10%
Frequency: 50 Hz/60 Hz ±5%, 400 Hz (optional)
Power factor ≥ 0.8 (standard type)
Output
Single-phase: adjustable 0–150 Vac, adjustable 0–300 Vac
Three-phase: adjustable 0–260 Vac, adjustable 0–520 Vac
Frequency: adjustable 40–400 Hz
Voltage accuracy ≤ ±1% FS (full scale)
Frequency accuracy ≤ ±0.01% FS (full scale)
The SHT-POWER ABP series offers many advantages, making it ideal not only for testing products for export or operating imported equipment, but also for applications such as testing military/avionics equipment or
operating 400 Hz electronics on aircraft or military ships
